Metal Detected

A few weeks ago the church had a boom lift parked right outside. The city permitted the lift to block the bike lane on 3rd St. and the street parking on Cedar Ave. for only two days. Unfortunately, it happened to be raining sporadically those days so our team had to construct a little enclosure so that they could conduct their survey.

dscn8279

Before the boom lift was delivered we met with conservators from Rosa Lowinger and Associates to examine the interior of the window to see what we could discover by potentially removing a small portion. The structural engineering team vetoed this idea citing that the wooden frame was, however inappropriately, carrying the load of the terracotta. So no information could be gained from the interior.

dscn8271

The following two days a boom lift was employed on the 3rd St. and Cedar Ave. sides of the building to document every crack in the brick and terra cotta exteriors. Using a special metal detector called an Elcometer Protovale Imp metal detector, metal armatures were found at the connection points of the terra cotta blocks in the rose windows tracery (See prior post for schematics).

dscn8274

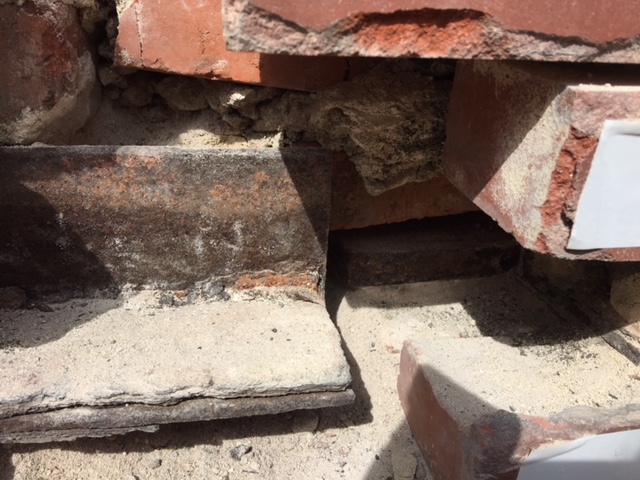

Corrosion of these interior armatures is a significant cause of cracking in the hollow blocks that cannot expand to accommodate the change of the size of the metal. Mapping the damage allows our team to locate the areas that are structurally compromised and helps them design an appropriate solution to mitigate the damage. Stay tuned for more details!

dscn8276

This is the first time we have been able to examine the north side because the trees were recently trimmed back.

Retro-FIT

Our church was one of the first historic buildings to seismically retrofit using the CenterCore system. Using this method, holes filled with grout and rebar were drilled from the bare rooftop. Water relief holes were drilled in the sides of the building to allow moisture to escape and make sure grout was packed all the way to the bottom. Jim Woods did the congregation a great service by photographing the 1980’s retrofit. His photos of the building, the work that was done to it, and what was hidden behind the walls have been instrumental in helping us understand the structural implications of the retrofit. Here are a few gems from his archive donation.

skmbt_c654e17010410340_0001

No roof, no shirts.

skmbt_c654e17010410360_0001

Grout and rebar being placed into the cored center of the wall,

skmbt_c654e17010410351_0001

Drilling of water relief holes

skmbt_c654e17010410330_0001

Relief hole showing more grout is needed

skmbt_c654e17010410361_0001

A car accident witnessed by the crews from the roof. Notice no one is going to the phone booths to call for help.

Deck the halls with scaffolding!

Many of you who were at Christmas service may be wondering why there is scaffolding under the east window again. The answer is because of further investigations by the preservation team. Several architectural conservators will be examining the interior window to learn how it was put together. Their investigation is timed to preface the boom lift that was mentioned a few posts ago.

img_6121

Through the course of our discussions it has become apparent that the north and east facades must be treated simultaneously. There are only four terra cotta manufacturers in the world. There is a lag between when the order is placed and the replacements are made and shipped. Ordering all of the replacement parts at once reduces the cost of shipping and the time to get the terra cotta pieces. To figure out how many total parts are going to be needed both facades must be examined.

img_5975



The north side may also be built differently than the east. The north cornice collapsed in the 1933 earthquake. It was rebuilt without the decorative brickwork that the east side has. This indicates that the church was not opposed to making significant changes to meet their budget. Further study should expose their alterations and help us address those problems specifically.



img_6162

To reach the north window a boom lift must be placed in the bike lane on 3rd St., which needs approval from the city. A permit requires proof of licenses, insurance, city approval of the insurance, a city endorsement, and other logistical information. It takes quite a bit of time to gather all of the materials and for the city to process the information. The investigation days have had to be rescheduled twice because of difficulties with the paperwork. Hopefully the boom lift will be coming soon, and all of the internal metal will be revealed. We will keep you posted!

Dimensions of Dimensioning

To properly analyze the building our experts need to know the exact length, width, and height of the entire façade in a computer aided design software called AutoCAD. AutoCAD first developed in 1982 to help architects, engineers, and manufacturers make their creations into digital renderings. Since then, it has become the standard for making dimensioned drawings on the computer. The digitizing process was first started at First Church last spring when I took a course on AutoCAD with architect Ted Lambros at Long Beach City College.

window-outline-pic



With help from the archive team, a portion of the class made copies of the original 1914 drawings of the First Congregational Church. The group then used those drawings as the blueprints for their final project. For bonus points, a few dedicated students met up with Ted at First Congregational to learn how to accurately dimension a building using a measuring tape and laser-measuring device.

dscn6825dscn6826



When our experts expressed a need for dimensioned drawings I was thrilled that these drawings could be used; however, drawings on paper are always different than what was actually built. I discovered this fact when I went around the lower façade with a measuring tape to double check the work that the students did. Unfortunately, the discrepancies were too significant to ignore so the process would have to be redone.

img_5890



To properly measure the building to accurately redraw the building I recruited Sam, the building property manager. One of his past lives was as a mover so his skills with a tape measure far exceed expectations. Here are several photos of the daring feats we accomplished with the tape measure.

img_5886img_5888I will post the finished drawing soon once it is completed!

Sneak peek behind windows

This past week several lucky members of the First Church team received a behind the scenes look at where and how the rose window is being restored. Last Wednesday, Yvonne, Sam, Elena, and I drove up to the valley meet Mike Oades at his studio in Chatsworth. He greeted us in a room with a large central table covered in tracings of window designs.

These drawings, he explained, are used to help identify how the windows differ from one another. Despite being planned off of the same template, the stained glass windows are made by hand and set into wood frames that warped uniquely depending on their placement. The results are usually no more than 1/8-1/4” which might not seem like a lot but any tiny gap allows entrance to damaging elements such as rain and other pollutants. img_5918

In addition, our windows were not made according to ‘spec.’ Stained glass windows should have an exterior leading that acts as a frame to hold all of the pieces together. In our case there is little to no exterior leading and the unprotected glass sat between the wood and terracotta. Mike is adding the exterior leading so that in the future the panes will be better protected but the 3/8” displacement from the new leading has to be taken into account to re-center the designs for re-installation.

img_5922

All of the east teardrop windows in storage

Once the design is outlined, the panels are moved to the other portion of his studio where all of the ‘dirty’ work happens. The windows are first left to soak in a water bath for 24-48 hours. This allows most of the grime to wash off and helps soften the leading. After this process is complete the windows are removed from their baths and the leading is removed by hand to separate the pieces. The leading in our windows is so soft from age that even without soaking it can be peeled up in most places with a pinkie finger.

img_5930

The broken panes are saved and used to make patterns for new replacement pieces. Unlike many other types of artistic media, glass manufacturing has not changed much in the past 120 years so the same exact colors are still available. What has changed is our ability to manipulate and maintain exact temperatures which effects how well the stains adhere to the glass.

img_5963

The cleaned non-broken pieces are first re-fired to make sure that any original stain that was not properly fired originally will be well adhered before restoration. The colors then get freshened up with new paint and re-fired. I expected huge kilns but instead found two Easy-Bake Oven look a likes, which makes sense because the pieces are re-fired while separated, not put together. img_5938

After the glass is repainted and fired several times, the pieces are laid out together like a jigsaw puzzle to be re-leaded. I was hoping the leading would come out of a machine like squeezy cheese (his assistant jumped in laughing, ‘I wish!’) but not such luck. Mike cuts the leading, bends it by hand to fit the curve of the glass shapes, and solders it back together.



img_5962

The face panes are made of two pieces that get stacked on top of each other. These are the two separated pieces before repainting.

img_5965

The stacked panes before and after restoration.



Here is a finished teardrop that will be on view as a contrast soon!

fullsizerender

Progress on frames and FCCLB prepares for a BOOM (lift)

This week I am beginning work on the wooden frames that operate as functional stops that hold the stained glass panes in place (see second post for pictures of stops in place). The stops were removed along with the stained glass windowpanes back in August. They have been stabilized with epoxy and are now ready for fine detail work. Before that can happen, all of the stops must be photographed and notes on their condition must be taken so that future generations will know what was done to them. Here are a few shots of my documentation process.

img_5808

My lovely photography set up.

img_5807

Example of documentation image.

img_5795

Bundled teardrop frames



img_5796

Half of the bundled ‘circular’ window frames.

Also, the church will be renting a boom lift to complete an investigation of the terracotta to locate buried metal. The metal anchors that hold the blocks together have corroded and are potentially the cause of many of the cracks. By mapping the metal and surrounding cracks we can determine the validity of a causal relationship and begin to find ways to address the problems. I have included two images from the National Terracotta Society’s 1914 manual that illustrate the types of metal we are hoping to find.

rose-window-tc-1914tc-iron-hangers-1914

Momastery

For several months scaffolding was erected in sanctuary to allow for access for investigations of the rose window. It was determined to be no longer necessary and Mike Oades and his team were able to take down the scaffolding. . The timing was fortuitous because every seat in the sanctuary was needed for last Thursday’s Momastery event.

photo-2

Momastery aka Glennon Doyle Melton packed the sanctuary full of women who came together for an evening to share their stories and their struggles. After an hour meet and greet Glennon spoke about her story, the origins of her new book, and her relationship with the United Church of Christ. She explained the draw to her UCC community as ‘finally finding a place where love and the church reached out to everyone.’

img_5553

Glennon Doyle Melton is one of many illustrious authors and speakers that First Church has hosted over the years. Past lecturers include Dr. Edward Krehbiel, a Stanford history professor and member of Wilson’s post-war peace settlement working group, in 1918, the scientist who discovered the charge of an electron and Nobel Prize winner Dr. R. A. Millikan in 1923, Russian royalty and UCLA professor Prince Andre Lobanoff Rostovsky in 1933, and many many more.

img_5524

We look forward to more lectures that bring current subjects to the forefront and make the First Congregational Church a meeting place for not only religious but also intellectually and emotionally challenging discussions.

A new case and Joseph Evan Mackay

This week the preservation team put together a new encasement for the Koinonia room. This one features a teardrop window that was removed from the east rose window. In it you can find examples of almost every kind of damage inflicted on the panes: cracking, broken pieces, soft/bent leading, chips, losses, a poorly constructed patch, and several BB gun holes to top it off.




Now on view in the Koinonia Room

In honor of the windows currently under restoration, here is a bit more information about the creator of our stained glass windows, Joseph Evan Mackay. Many thanks to Bob Kalayjian who spent countless hours putting together such a wonderful trove of information!



sketches-for-window-copy

Sketches for east rose window angels, Joseph Evan Mackay, 1913.

Joseph Evan Mackay was a Scottish emigrant born in the 1864 who moved to New York City in 1884. He worked with John LaFarge for three years until he began working at Tiffany Glass and Decorating Company. His time at Tiffany was tumultuous. He later sued the company in 1897 for a $17,000 commission he had earned.[1] It is unknown whether or not he was successful in his suit.

tiffany

Magnolia and Irises, 1908, Tiffany Glass, Co. Now at the Metropolitan Museum in New York.

By the early 1900’s he had moved to San Francisco where he began to distinguish himself by diverging from traditional European iconography and including Western naturalistic imagery. He left the bay area after a few years and moved down to Los Angeles. In 1905 the Los Angeles Times reported a strike at his warehouse over his hiring of a Japanese glassmaker he knew from his time at Tiffany in New York.[2]



mackay-view-from-tiburon-copy

Bay as seen from Tiburon (1904) by Joseph Evan Mackay. Now in the Minnesota Marine Art Museum in  Winona, Minnesota.





His liberal politics must have endeared him to the relatively young First Congregational Church of Long Beach. He was hired in 1913 to design all of the stained glass and interior spaces. He continued creating art glass in California until his death in 1938. He is buried in Beverly Hills.

[1] Paint, oil and drug review Vol. 24 No. 1. July 7, 1897 Chicago: D. Van Ness Pub. Co.

[2] Wouldn’t work with any Jap.” The Los Angeles Times. August, 13, 1905. [Los Angeles, Calif.]: Times-Mirror Co.





The skylights are back!

Finally the skylights in the Kononia room are back in place and boy do they look fantastic! Not only was the glass cleaned and sagging in the frame fixed by J. Michael Designs but thanks to Sam Johnson, Yvonne Samarion, and a new volunteer David Eckhous the interiors were repainted and solar powered lights were installed to illuminate the glass at night. Hopefully their efforts combined with the recaulking the Historic Preservation Committee did Spring of 2015 will mean that the skylights will be in stellar condition for the next hundred years.

Here are some during and after photos:

photo-3

Repainted interior of the skylights. Thanks again Sam!

photo-2

One of the new solar powered flood lights.

After shots:

dscn7646

No more sagging!

dscn7638

All three newly cleaned skylights

dscn7641

Look at the intensity of the color!



Is it a cult?

“Is it a cult?” was Church Historian Kathy Young’s first impression of the First Congregational Church. Before Kathy joined FCCLB she was a practicing architect who attended a Methodist Church. After she came out to the pastor in 1991, he politely suggested that she might find our church more comfortable. And she did, but not without some misgivings.

2015-10-25 16.17.24

She recalls the energy in the church immediately before the open and affirming stance. The congregation was so passionate that it frightened her a bit. What changed her mind was attending an “Anchors” meeting (a former social initiative that grouped like aged individuals together for supper) at the Miller’s residence. Mary Ellen, our pastor in the 1990’s, had just said something that was “pie in the sky” and Karen Miller boldly disagreed with her. Kathy remembers thinking; “Hot damn, it’s not a cult!!”

20160824_175908

Fast-forward a few years, Kathy was called to become the church historian. One of her first tasks was to look into a file cabinet Jerry Stinson, our previous pastor, wanted cleared out of what is now the audio visual office off in the south east corner of the building. Kathy and Cynthia Holt pried open the bottom drawer and in it they found the original minutes from the first church meeting in 1888. Cynthia cried.

photo 3

They then began a campaign along with Barbara Smith, Pam Chapin, Kathleen O’Neal and others to locate and organize all of the documents. “We checked just about everywhere except the bathrooms.” Kathy says (Historic toilet paper anyone?). Once they sorted most of the materials into decades they used the old sheet music room as an archive space. Some of the found treasures include boxes of slides of photos dating back to the early 1940’s, two boxes full of architectural drawings including the 1914 originals, and my personal favorite the early women’s committee meeting notes, those ladies knew how to run the church.

photo 2

Once the documents were reasonably organized Kathy spearheaded the timeline initiative, the results of which are up in the Koinonia room. Working 4-10 hours a day almost every day for a year, nearly 1400-1500 hours, Kathy picked out church facts that she found the most interesting and matched them up to current events that she thought people would remember. Kathy was most astonished to find that the First Congregational Church had been ahead of the curve on almost every major social justice movement in the 20th century. From staunch anti-war stances in WWI, to women’s rights, to civil rights, to gay rights the First Congregational Church has always been open and affirming to all people.

photo 1

There is much more filing to do and many more hidden gems to find in the archive. Kathy hopes that someday students and church members will use our collection for research purposes. For now, the archives can be access by appointment with Kathy or Barbara Smith.
